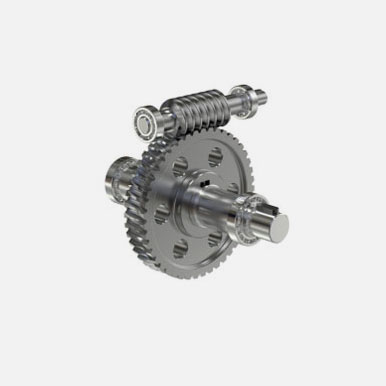

A worm and wheel gear set, also known as a worm gear, is a type of gear arrangement that consists of a worm and a wheel (also called a worm wheel or worm gear). It is a compact and efficient mechanism used for transmitting motion between perpendicular axes.

The worm gear is composed of two main components: the worm and the wheel. The worm is a cylindrical gear with a helical thread-like structure called the worm thread, which resembles a screw. The wheel, on the other hand, is a gear with teeth that engage with the worm.

Here's how the mechanism works: When the worm is rotated, the helical thread on its surface meshes with the teeth of the wheel. As the worm rotates, it drives the wheel to rotate as well. However, the unique feature of a worm gear is that it typically has a high gear reduction ratio, meaning that the wheel rotates at a much slower speed compared to the rotational speed of the worm.

This feature makes worm gears suitable for applications where large speed reductions are required. For example:

  1. Lifting Mechanisms: Worm gears are commonly used in lifting mechanisms such as elevators, cranes, and winches. The worm gear's high gear reduction allows for the slow and controlled lifting or lowering of heavy loads.
  2. Conveyor Systems: Worm gears can be found in conveyor systems used in industries like manufacturing and logistics. They provide the necessary power transmission and speed control for moving products along a production line or within a warehouse.
  3. Valve Actuators: Worm gears are often used in valve actuators to control the flow of fluids or gases in pipelines. The worm gear's ability to provide precise and slow rotational motion is beneficial for accurately positioning valves.
  4. Robotics: Worm gears can be found in robotic systems, particularly in joints and manipulator arms. They enable precise control and smooth movement in robotic applications that require fine adjustments and positioning.

In summary, a worm and wheel gear set, or a worm gear, is a gear arrangement that consists of a worm and a wheel. It provides a high gear reduction, enabling slow and controlled rotation of the wheel compared to the worm's rotation. Worm gears find applications in various industries, including lifting mechanisms, conveyor systems, valve actuators, and robotics.
